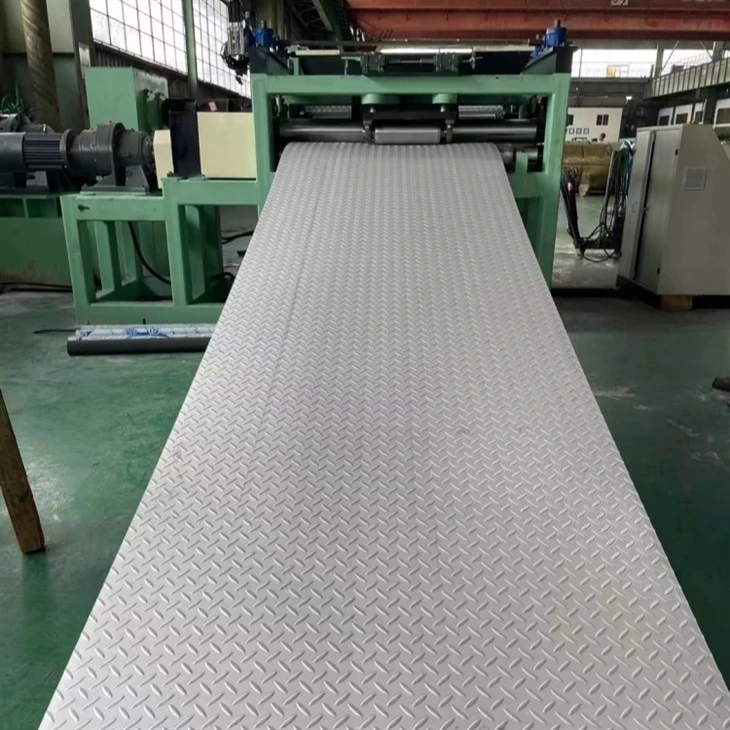

304 Stainless Hlau Checker Phaj
2. Pom zoo los ntawm ISO9001, CE, SGS txhua xyoo
3. Kev pabcuam zoo tshaj plaws nrog 24 teev teb
4. Kev them nyiaj yooj yim nrog T / T, Paypal, thiab lwm yam
5. Muaj peev xwm ua tau zoo (50000tons / hli)
6. Ceev tus me nyuam thiab txheem exporting pob
7. E-mail:support@leyihua-tech.com
8. Whatsapp: +86 18020306039
kev taw qhia
304 Stainless Hlau Checker Phaj yog stainless hlau phaj nrog tsa cov qauv ntawm qhov chaw, muaj li ntawm 18% -20% chromium thiab 8% -10.5% npib tsib xee. Raws li cov txheej txheem sib txawv, 304 Stainless Steel Checker Phaj tau muab faib ua ob hom: txias dov thiab kub dov, tsim nyog rau cov plag tsev muaj, tiv thaiv plam platform, kho kom zoo nkauj vaj tsev, thiab lwm yam xwm txheej.
feature
txias -rolled phaj
Ntxim qab
Lub 304 Stainless Hlau Checker Phaj, uas yog ua tiav los ntawm cov khoom siv txias dov, muaj qhov du thiab meej kev ntxhib los mos. Lub roughness Ra tuaj yeem tswj tau li ntawm 0.2 μm. Nws yog dav siv nyob rau hauv ib puag ncig uas muaj kev zoo nkauj zoo nkauj xws li kho kom zoo nkauj sab hauv, chaw lag luam, thiab elevator sab hauv phab ntsa.
High precision
Cov txheej txheem txias dov tuaj yeem tswj cov tuab ntawm 304 Stainless Steel Checker Phaj nyob rau hauv thaj tsam ntawm 0.5-3.0 hli, thiab cov tuab tuab tuaj yeem ncav cuag ± 0.02 hli, uas yog qhov tsim nyog rau kev tsim thiab siv cov kev sib dhos precision thiab siab - cov khoom kawg thiab txo cov kev ua yuam kev tom qab thiab cov nqi.
Kev ua haujlwm zoo
Txias -rolled 304 Stainless Steel Checker Phaj muaj cov qauv ntom ntom thiab yooj yim rau kev ua haujlwm sib sib zog nqus xws li shearing, dabtsi yog khoov, thiab stamping, uas ua kom zoo dua qub kev tsim khoom thiab sib xws ntawm cov khoom tiav. Nws yog tsim rau customized tej yaam num uas yuav tsum tau siab rau qhov loj thiab kev tsim raug.
kub -rolled phaj
Siab zog
Qhov tuab ntawm qhov kub- dov 304 Stainless Steel Checker Phaj yog 3.0-10.0 hli. After hot processing, the material has better structural density and strength, with a tensile strength of>=515 MPa and a yield strength of>=205 MPa. Nws yog tsim rau industrial platforms, cov khoom siv brackets, thiab ramp systems nrog loj loads.
Muaj zog tiv thaiv -poob nyhuv
Cov txheej txheem kub dov tsim ib puag ncig convex kev ntxhib los mos nrog kev sib txhuam coefficient siab dua 0.65, ntxiv kev txhim kho kev tiv thaiv - plam muaj peev xwm ntawm 304 Stainless Steel Checker Plate nyob rau hauv qhov chaw ntub lossis oily, ua kom muaj kev nyab xeeb ntawm cov neeg ua haujlwm thiab cov khoom siv.
Kev cuam tshuam zoo
Qhov kub- dov 304 Stainless Steel Checker Phaj muaj kev cuam tshuam zoo thiab hnav tsis kam vim nws cov phaj tuab tuab. Nws yog tshwj xeeb tshaj yog haum rau siv nyob rau hauv siab - coj qhov chaw xws li hnyav kev lag luam, mining, thiab tsheb thauj mus los, ncua kev pab cuam lub neej thiab txo cov zaus txij nkawm.
Specifications
| Hom | Qauv | Thickness ntau (mm) | Standard Loj (mm) | Yam ntxwv | Daim ntawv thov |
|---|---|---|---|---|---|
| Txias -Rolled | Ntsej muag, cov qauv sib xws (pob zeb diamond, kua muag poob) | 0.5 - 3.0 | 1000x2000, 1250x2500, 1500x3000 | Smooth, meej tiav nrog siab qhov tseeb | Sab hauv pem teb, hniav panels, coj mus muag interiors |
| Kub-Rolled | Rounded, tsa cov qauv | 3.0 - 10.0 | 1500x6000, 1800x6000, 2000x6000 | Durable, me ntsis ntxhib nto nrog thicker qauv | Kev lag luam platforms, hnyav- txoj haujlwm ramp, taug kev sab nraum zoov |
Chemical Composition thiab Mechanical Properties
| Element | Chemical Composition (%) | Mechanical Properties | Tus nqi |
|---|---|---|---|
| Cov pa roj carbon (C) | Tsawg dua lossis sib npaug li 0.08 | Tensile zog | 515 MPa (min) |
| Chromium (Cr) | 18.0 - 20.0 | Yield zog | 205 MPa (min) |
| Nickel (Ni) | 8.0 - 10.5 | Elongation | 40% (min) |
| Manganese (Mn) | Tsawg dua los yog sib npaug rau 2.0 | Hardness (Brinell) | 201 HB max |
| Silicon (Si) | Tsawg dua lossis sib npaug li 0.75 |
